Custom Movable Mini Electric Swinging Arms Floor Mounted Jib Crane with 360° Rotation and Rated Lifting Moment 10-2000KN

Name: Custom Movable Mini Electric Swinging Arms Floor Mounted Jib Crane with 360 Rotation and Rated Lifting Moment 102000KN
Brand: HUAGONG
Price: 20 USD

Wholesale Custom Movable Mini Electric Swinging Arms Floor Mounted Jib Crane with 360° Rotation and Rated Lifting Moment 10-2000KN from china suppliers

Place of Origin : Henan, China

Brand Name : HUAGONG

Price : CN¥20,905.80/sets 1-9 sets

Model Number : JIB

Certification : CE

MOQ : 1 SET

Payment Terms : T/T

Delivery Time : 15 DAYS

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Core Components : Engine, Bearing, Gearbox, Motor

Application : Industrial production line

Rated Loading Capacity : 0.5~20t

Rated Lifting Moment : 10-2000KN

Max. Lifting Height : 3~10m

Span : 2~10m

Warranty : 1 Year

Weight (KG) : 380 kg

Product name : Column Mounted Slewing Jib Crane

Type : Jib Crane

Lifting mechanism : Elctrical Hoist

Control method : Pendent Control/Remote

Turning angle : 90 Degree

Color : Customer's Requirements

Contact Now

Rated Lifting Moment 10-2000KN Custom Movable Mini Electric Swinging Arms Floor Mounted Jib Crane with Electrical Hoist

BZ Type Free Standing Jib Crane Overview

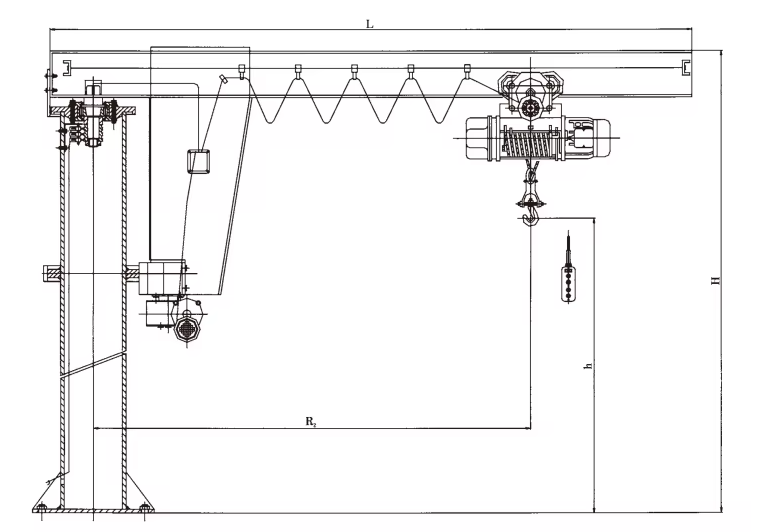

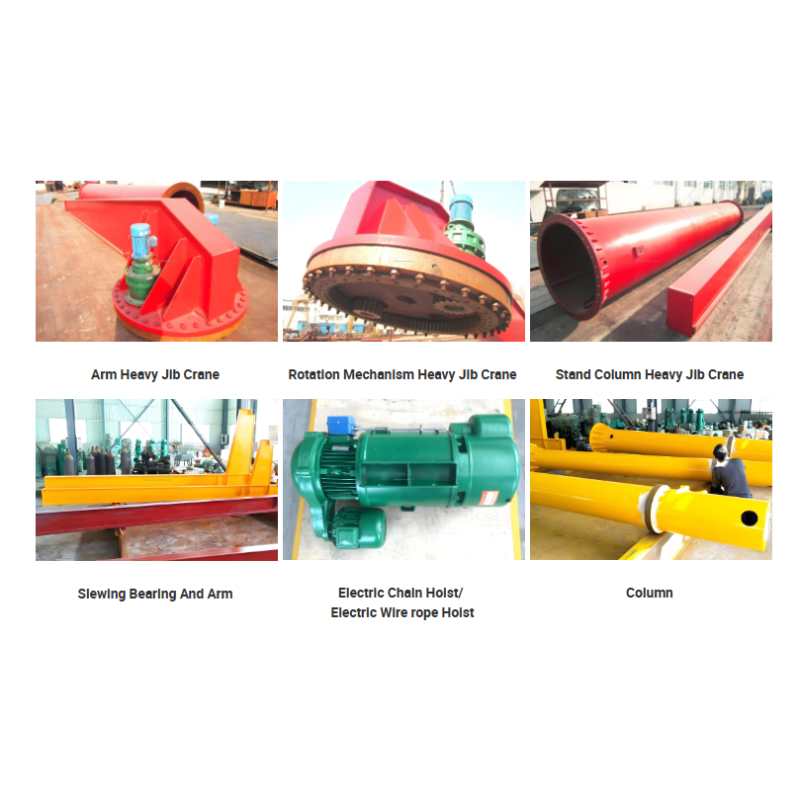

The BZ type cantilever crane is designed for use with chain hoists or wire rope hoists. This robust system consists of a column, swing arm, cantilever drive device, and electric hoist. The column base is securely fixed to concrete foundations using anchor bolts for maximum stability. An electric motor drives the reducer to enable smooth rotation of the cantilever beam, while the electric hoist travels back and forth along the cantilever I-beam.

Key Features

Space-Saving Design - Optimizes floor space utilization
360° Rotation - Full circular coverage for maximum flexibility
Free Performance - Smooth and efficient operation
Unique Structure - Innovative engineering design
Flexible Operation - Adaptable to various workspace requirements
Safe and Reliable - Built with safety as a priority

PRODUCT DESCRIPTION

Model		BZD0.125	BZD0.25	BZD0.5	BZD1	BZD2	3203	3ZD5
Capacity		0.125t	0.25t	0.5t	1t	2t	3t	5t
Lift Height		3m	3m	3m	3m	3m	3m	3m
Rotation Radius		3m		4m	5m		6m
Working Radius		L-200mm
Working Radius		1m	1m	1m	1m	1m/1.5m	1.8m	1.8m
Lift Speed(m/min)		8/2	4/1,10/2.5	5/1.25.10/2.5	5/1.25,8/2	4/1	4	8
Traveling Speed(m/min)		7, 14,28
Rotation Speed		0.8 r/min
Rotation		360 degree
Machine Height(m)		3.6/3.75/3.8/3.85	3.75/3.8/3.85/3.85	3.85/3.9/4.0	4.0/4.05/ 4.1/4.15	4.25/4.4/4.45	4.3/4.45/4.5/4.65	4.6/4.9/4.95
Motor	Rotation Motor(kw)	0.37	0.37	0.37/0.55	0.37/0.55	0.55/0.75/1.10	0.55/0.75/1.10	1.1
	Lift Motor(kw)	0.2/0.05	0.2/0.05,0.5/0.13	0.5/0.13,1.0/0.25	1.0/0.25,1.5/0.35	1.5/0.35	2.3	2.3
	Traveling Motor(kw)	0.14	0.14	0.14	0.2	0.2	0.4	0.5

Product Images

Custom Movable Mini Electric Swinging Arms Floor Mounted Jib Crane with 360° Rotation and Rated Lifting Moment 10-2000KN
